What Is a Steel Stair Stringer – And Why Does the Connection Matter?
Before diving into connection methods, let’s clarify the terminology. A steel stair stringer is the primary structural member that directly supports the treads. In traditional construction, a steel stair stringer system uses a heavy beam with cleats or brackets attached to hold each tread. The steel stair to floor connection is the critical point where the entire staircase transfers its load to the building structure.
Steel Stairs: Stringer Beam vs. Standard Stringers
| Term | Definition | Connection Approach |
|---|---|---|
| Stringer Beam | Primary structural beam with cleats | Direct load transfer through cleats to beam to slab |
| Standard Stringer | Notched or profile side member | Load distributed along full length to top and bottom connections |
The connection method depends on which system you’re using. Attaching to steel stairs – whether top, bottom, or both – follows the same principles but with different anchorage details.
Step 1: Identify the Substrate Type for Steel Stairs
Attaching steel stair stringers to concrete floor is different from attaching to a wood subfloor. Connection methods must match the substrate. The steel stair to floor connection requires different hardware depending on whether you are connecting to concrete, steel, or wood. Hardware must be selected based on substrate type and load requirements.
For steel stairs, the substrate type determines the anchoring method and hardware selection.
| Substrate Type | Connection Method | Hardware Required |
|---|---|---|
| Concrete slab | Cast-in anchor bolts or post-installed expansion anchors | Anchor bolts, bearing plates, nuts, washers |
| Steel beam | Welded connection or bolted angle bracket | Steel angles, bolts, welding consumables |
| Wood subfloor | Lag bolts or through-bolts with bearing plate | Lag screws, through-bolts, bearing washers |
| Composite deck | Through-deck anchoring with shear studs | Shear studs, anchor bolts, embeds |
Once you identify the substrate, the next step is to analyze the load path.
Step 2: Load Path Analysis for Steel Stairs
Connecting steel stairs requires understanding three types of loads:
The Three Types of Loads to Consider
Vertical load (dead + live) – downward force from people and the staircase weight.
Shear load – horizontal force at the connection point.
Uplift load – upward force (seismic or accidental).
Load Path Analysis
| Load Type | Primary Concern | Connection Method |
|---|---|---|
| Vertical compression | Crushing or bearing failure | Bearing plates and support beams |
| Shear | Bolt or anchor shear failure | Adequate bolt size and count |
| Tension/Uplift | Pullout from substrate | Proper embedment depth |
| Eccentricity | Moment at connection | Offset brackets or moment connections |
How to Conduct the Load Path Analysis
Engineering requires that each connection point transmits loads into the structure without exceeding the capacity of either the fastener or the substrate. A well-designed connection accounts for all these load types simultaneously. Proper load path analysis ensures your steel stairs remain stable under all conditions.
Step 3: Connection Methods for Steel Stairs
For a reliable connection, selecting the right method is critical. Each method has specific applications based on load requirements and substrate type. Each connection method for steel stairs has specific advantages depending on the application.
| Connection Method | Description | Best Application |
|---|---|---|
| Direct anchor bolt | Bolts cast or drilled into concrete | Concrete slabs, heavy loads |
| Steel angle bracket | L-shaped bracket bolted to beam and slab | Steel-to-concrete connections |
| Welded connection | Carriage beam welded to embed plate | Steel structures, high load capacity |
| Bearing plate + anchor | Plate distributes load to substrate | Concrete and masonry |
Step 4: Choose the Right Hardware for Steel Stair Stringer Connections
Proper hardware selection is critical for a durable connection. The hardware must match the substrate type and load requirements for your steel stairs.
| Hardware Category | Recommended Type | Key Specification |
|---|---|---|
| Anchor bolts (concrete) | Cast-in or expansion (wedge or sleeve) | Diameter: 5/8″-1″, embedment: 6× diameter |
| Bolts (steel-to-steel) | Grade 5 or Grade 8 structural bolts | ASTM A325 or A490 |
| Bearing plates | Structural steel plate | A36 steel, thickness: 1/2″-3/4″ |
| Welding electrodes | E70XX series | Match parent material strength |
Step 5: Design Connection Details for Steel Stairs

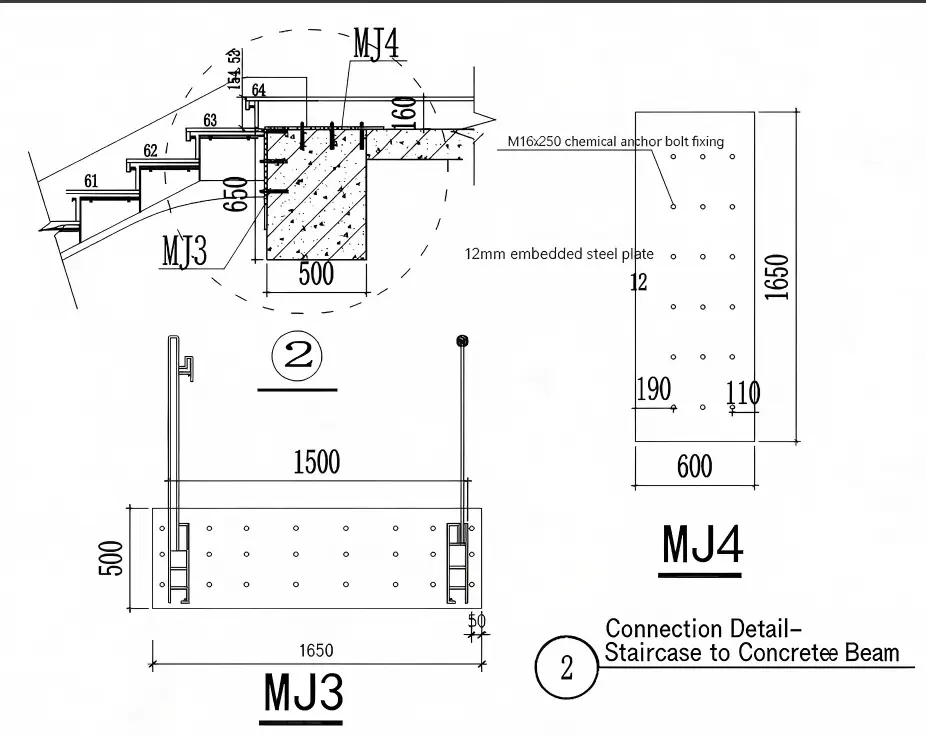

Connection Detail – Staircase to Concrete Beam
| Connection Detail | Key Design Consideration | Minimum Requirement |
|---|---|---|
| Top connection | Transfer vertical and lateral loads | 2 anchor bolts, 1/2″ diameter minimum |
| Bottom connection | Transfer vertical load and prevent uplift | 2 anchor bolts + bearing plate |
| Intermediate support | Additional support for long spans | As required by span calculation |
| Expansion joint | Allow for differential movement | 1/4″-1/2″ clearance with slotted holes |
Step 6: Quality Control & Inspection for Steel Stair Connections
Quality control for steel stairs stringer to floor connection includes torque verification, weld inspection, and embedment depth measurement. A thorough inspection ensures your connection meets all safety requirements.
| Inspection Type | Method | Acceptance Criteria |
|---|---|---|
| Anchor bolt torque | Calibrated torque wrench | Meet manufacturer’s specified torque |
| Weld inspection | Visual inspection (VT) or NDT | No cracks, porosity under 5% |
| Embedment depth | Direct measurement | Within 1/8″ of design depth |
| Bolt tension | Skidmore-Wilhelm or turn-of-nut | Meet specified preload |
However, even with strict quality control, certain common deficiencies can still occur if not carefully avoided.
Step 7: Avoid Common Deficiencies in Steel Stairs
| Mistake | Consequence | Prevention |
|---|---|---|
| Incorrect embedment depth | Pullout failure | Use depth stop on drill |
| Insufficient edge distance | Concrete blowout or splitting | Follow manufacturer’s edge distance |
| Missing bearing plate | Concentrated stress on substrate | Include in connection drawing |
| Overtightened bolts | Bolt failure or thread stripping | Use calibrated torque wrench |
| No shear transfer | Lateral movement | Add shear lug or roughened surface |
| Inadequate corrosion protection | Premature rust and degradation | Galvanize or apply protective coating |
Step 8: Design Checklist
Before finalizing your steel stairs design, review this checklist:
Have you identified the substrate type (concrete, steel, or wood)?
Have you calculated all three load types (vertical, shear, and uplift)?
Have you selected the correct anchor bolt size and embedment depth?
Have you included bearing plates for load distribution?
Have you allowed for differential movement (expansion/contraction)?
Have you specified corrosion protection for all components?
Have you included inspection and torque verification in the plan?
FAQ: Common Questions About Steel Stair Stringer Connections
To help you better apply these engineering principles to your specific steel stairs project, we have compiled the most common inquiries we receive from clients at Meistairs, along with their answers.
Q1: Can I connect steel stair stringers directly to a wood subfloor?
A: In most cases, Yes, but not with standard concrete anchors. You must use lag bolts or through-bolts with a bearing plate to distribute the load. For heavier steel stairs or high-traffic commercial applications, we strongly recommend adding a steel header or blocking between the floor joists to prevent localized wood crushing and ensure the connection can handle the shear and uplift loads.
Q2: What is the most common cause of connection failure in steel stairs?
A: Based on our installation data, the number one cause is incorrect embedment depth of concrete anchors. If the anchor is too shallow, it will pull out under tension or uplift. The second most common issue is missing bearing plates, which leads to concentrated stress and concrete blowout. Always refer to Step 4 and Step 7 of this guide to avoid these pitfalls.
Q3: Do I need to use slotted holes for steel stair connections?
A: For long spans or connections exposed to temperature variations, yes. Slotted holes (as mentioned in Step 5) allow for slight differential movement between the steel stairs and the building structure. This prevents the connection from binding or cracking the surrounding concrete due to thermal expansion or minor structural settling.
Q4: How do I inspect a welded connection on a steel stair stringer?
A: Visual inspection (VT) is the first step, checking for cracks or undercut. However, for critical steel stairs connections, Non-Destructive Testing (NDT), such as dye penetrant or ultrasonic testing, is recommended. As outlined in Step 6, the weld must match the parent material strength (typically E70XX electrodes) and have no porosity exceeding 5%.
Q5: Can Meizstairs help with the connection design if I only have the architectural drawings?
A: Absolutely. As your problem-solving partner, we don’t just supply steel stair components. Our engineering team can take your architectural drawings, analyze the load path, identify the correct substrate anchoring method, and provide you with a fully engineered connection detail (like the M/J3 and M/J4 details shown in Step 5). Contact us to get started.
Ready to Engineer Your Steel Stair Stringer Connection?
Connecting steel staircase to floor slabs requires careful engineering. First, identify your substrate type. Then, analyze the load path. Furthermore, select the right hardware and anchorage depth. However, many projects fail due to missing bearing plates or poor embedment. Therefore, follow the quality control steps above. Finally, always verify torque and inspect all connections. Meistairs engineers can help you design and fabricate safe, durable metal staircase connections.
