Client: Summit Ceramic Co., Ltd., Foshan, Guangdong Province, China

Industry: Commercial Interior Design and Showroom Renovation

Project Scope: A magnificent two-story spiral steel staircase in the main reception hall

Key Challenge: Eliminating structural resonance and uneven load distribution on a massive frame with a 9-meter span and 5-meter diameter.

Executive Summary

Summit Ceramic, a globally renowned ceramic enterprise headquartered in Foshan, Guangdong, undertook a large-scale renovation and upgrade of its flagship showroom. To create a breathtaking visual centerpiece in the main reception hall, they required a grand two-story spiral steel staircase. As a top-tier custom staircase manufacturer with 15 years of industry experience, MeizStairs was invited to design, manufacture, and supply this monumental architectural element. This case study details how advanced mechanical modeling and innovative structural reinforcement techniques successfully resolved the large-span vibration challenge, ultimately delivering an iconic commercial feature.

The Problem

Designing a visually striking staircase for a high-traffic corporate showroom demands exceptional structural requirements. During the initial engineering review of the Summit Ceramics lobby project, several key challenges emerged:

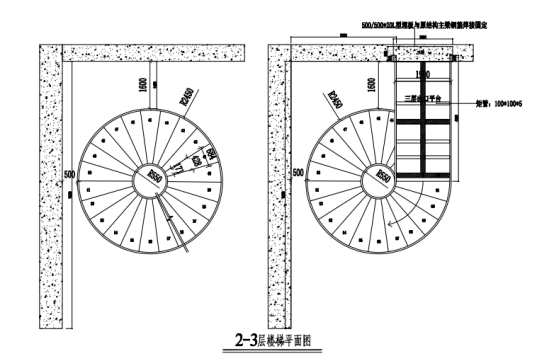

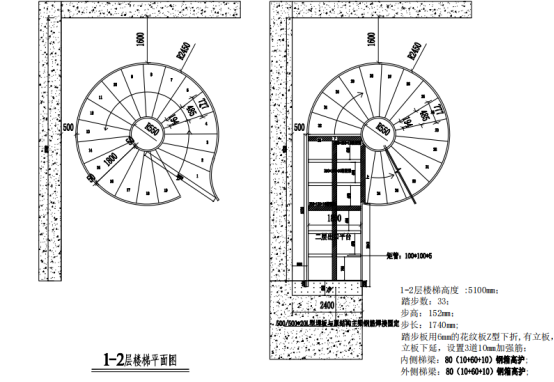

Grand Scale, Long Span: The staircase design spans two floors (Level 1 to Level 3), with a vertical height exceeding 5 meters, a total span of 9 meters, and a diameter of 5 meters.

Uneven Load Distribution: Due to the large radius and curved geometry, standard spiral staircase structures suffer from uneven weight distribution.

Resonance and Vibration Risk: Such a span creates high structural resonance and vibration risk in standard steel box structures under heavy foot traffic in public exhibition spaces.

MeizStairs SolutionMeizStairs

To ensure structural rigidity, absolute safety, and a flawless surface finish, the MeizStairs engineering team adopted a rigorous, technology-driven approach:

Advanced Mechanical Modeling and Finite Element Analysis: We conducted comprehensive mechanical modeling to simulate load behavior across the 9-meter span and precisely identified vulnerable stress regions prone to harmonic vibration.

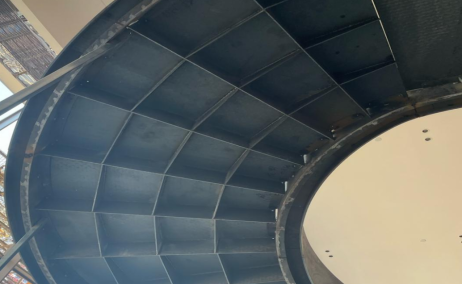

Precision Reinforcement Integration: To completely eliminate resonance in the steel box frame, our engineers employed three rows of heavy-duty 10mm thick steel plate stiffeners. Positioned beneath the treads, these significantly enhanced structural stiffness and load-bearing capacity.

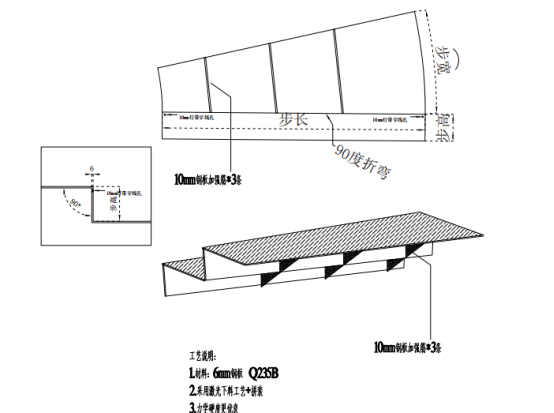

Optimized Material Selection and Manufacturing: Treads are crafted from premium 6mm Q235B steel plate, formed through precision laser cutting and custom fabrication processes.

A Z-fold downward tread design with extended risers and integrated cable routing holes enables sleek, modern LED strip light integration. Robust inner and outer steel box beams engineered with high-strength structural guard plates.

Factory Pre-Assembly Quality Control: As a leading staircase manufacturer in China, we performed comprehensive trial assembly at our factory to ensure every curved section and weld alignment perfectly matched blueprint specifications before shipping to the site.

Results & Value

Vibration-Free Stability: The integration of specially engineered 10mm stiffeners completely eliminated structural resonance, ensuring a solid, premium feel even in high-traffic commercial settings.

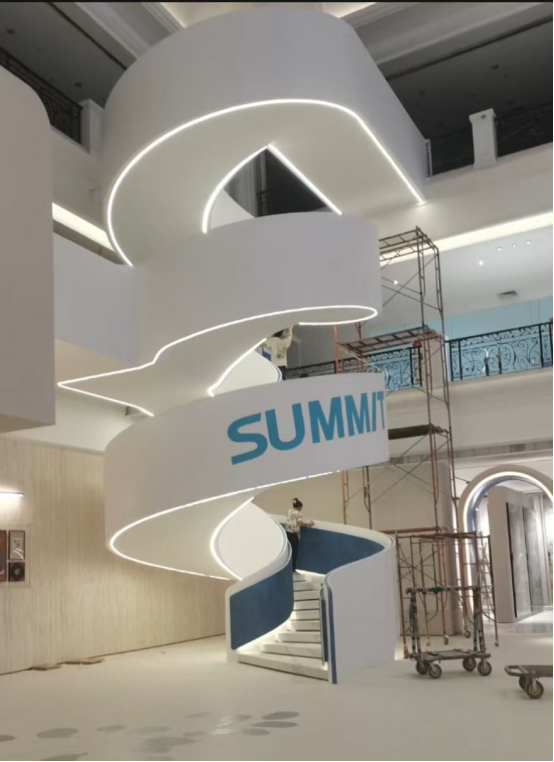

Stunning Aesthetic Impact: The completed spiral steel staircase blends seamlessly with flowing curves and ambient architectural lighting, transforming the Summit Ceramics lobby into a modern, high-end visual masterpiece.

Commercial Excellence: The project highlights MeizStairs’ capability to handle complex, large-scale commercial engineering, solidifying our reputation as a trusted partner for global corporations and commercial showrooms.

Conclusion

This project demonstrates that grand architectural scale demands uncompromising structural engineering. MeizStairs combined advanced mechanical design with precision steel staircase manufacturing craftsmanship to deliver a masterpiece that perfectly aligns with Summit Ceramics’ premium brand image. Whether you are designing a luxury private villa or a large commercial showroom, MeizStairs delivers the technical expertise, manufacturing reliability, and OEM custom staircase factory capabilities needed to turn ambitious architectural visions into reality.
